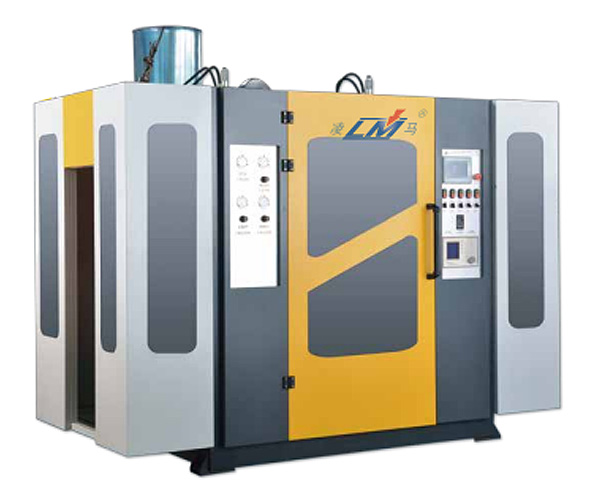

Full Automatic Extrusion Blow Moulding Machine
Full Automatic Extrusion Blow Moulding Machine

Model: QCM-85-10L
Categories: Extrusion Blow Moulding Machine > QCM-85 Extrusion Blow Moulding Machine
Description:
SOECIFICTIONS QCM-85-10L
Material _ PE PP PVC PA
Number of die Set 1、2
MAX container capacity L 10
Machine Dimension(LxWxH) m 3.96x3.1x2.7
Total weight Ton 7
CLAMPING
Clamping force KN 100
Platen opening stork mm 200~600
Stroke of mould board mm 350
Max mould size (WxH) mm 550x510
Mould thickness mm 220~320
EXTRUDER UNIT
Screw diameter mm 85
Screw L/ D ratio L/D 24
Plasticising capacity(HDPE) kg/h 90
Number of heating zone zone 4
Screw heating power Kw 16
Power of screw-bar machine Kw 0.72
Extruder driving power Kw 30
MACHINER HEAD
Number of heating zone zone 3
Power of die heating Kw 4~8
Max die-pin diameter mm 190
ENERGY-CONSUMPTION
General power of machine Kw 6
Power of the electric motor of oil pump Kw 15
Air pressure Mpa 0.6~0.8
Average energy consumption Kw 40
Using quantity of compression air m3/h 1~1.5
Using quantity of cooling water m3/h 1.5~2.5
